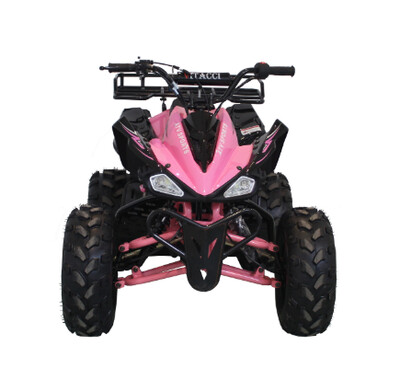

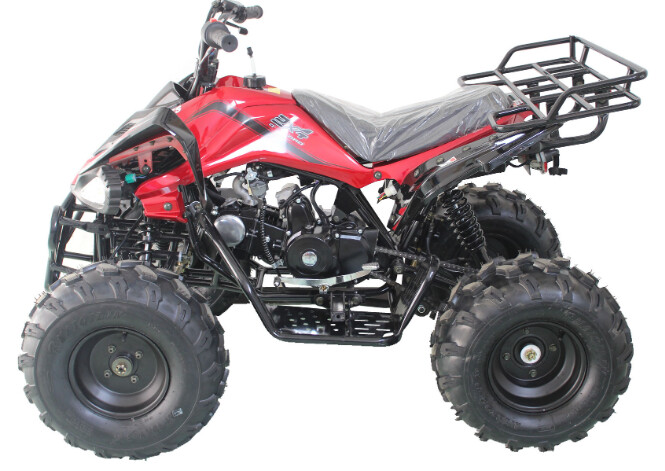

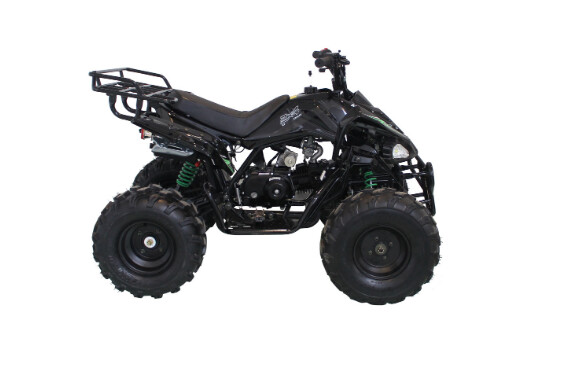

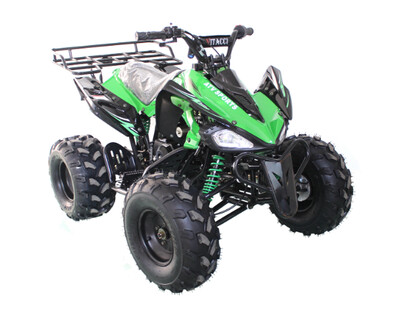

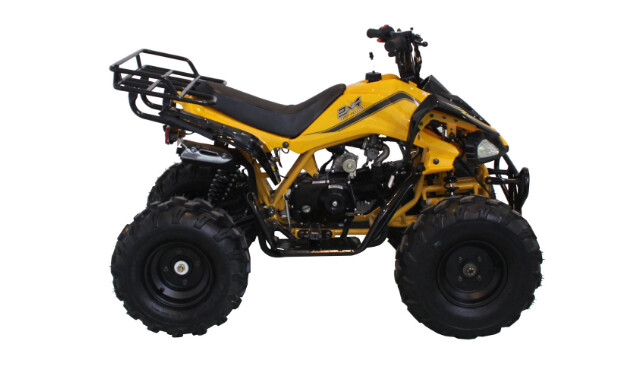

JET 9 125CC ATV

Model No:

JET 9" 125cc

Colors available:

RED, BLUE, BLACK, ORANGE, GREEN

ENGINE INFO

Engine Type:

4-stroke ,single cylinder, OHC

Cooling:

Air cooled

Max speed:

30. mile/h

Ignition:

C.D.I

Starting system:

Electric

Battery:

12V/5Ah

Engine oil:

SAE15W/40SF

Gear oil:

*

Transmission:

Auto with reverse on both

Driveline:

Chain-drive

Driving wheel:

Rear wheel drive

Brakes

Front/Rear:

DRUM/DISC

Brake operation:

Grip brake

Tires

Front/Rear:

19*7-8 18*9.5-8

Fuel capacity:

2.3 L

WEIGHT

N.W./G.W.

Max Load:

264.5/319.7 LBS.

143.3 LBS.

Wheelbase:

44.1 inches

OA L*W*H:

66.9*45.3*43.3 inches

Height to seat:

37.4 inches

Min ground

clearance:

3.2inches

Carton size:

55.5*34*30.3inches
